Adding an AWS Region to Aurora PostgreSQL (Global Database) Adding an AWS Region to Aurora PostgreSQL (Global Database)

At the end of the Add a Reader article I said that surviving the loss of a whole AWS Region is a different feature called Aurora Global Database. This is that article. We take the same database-1 cluster from the setup guide, still living in us-east-1, and give it a second home in Canada so a regional outage does not take the data down with it.

This one has more moving parts than adding a reader, and it hit three real walls along the way. I left all three in, because they are exactly the things nobody warns you about.

Things you should know first

Aurora Global Database has a handful of rules that will trip you up if you meet them mid-task instead of up front. Here they are in one place:

• Burstable instances are not allowed. db.t3 and db.t2 classes cannot join a global database. You must run a memory-optimized db.r class (for example db.r5.large) on the primary first. This is the wall most people hit.
• The Secrets Manager managed master password is not supported. If your cluster uses the “Manage master credentials in AWS Secrets Manager” option, you have to switch to a self-managed password before you can go global.
• Encryption keys are per Region. A KMS key lives in one Region and cannot cross into another, so the secondary Region needs its own key. You pick it during the Add-Region step.
• New Regions may be “opt-in.” Regions launched after early 2019 (Canada West / Calgary is one) are switched off by default on your account and must be enabled first. More on this below, because it caused the third gotcha.
• A couple of features drop off. Backtrack is not available on global clusters, and you cannot stop and start a global database the way you can a single cluster.
• There are scaling limits. Up to 10 secondary Regions, and each secondary you add costs the primary one reader slot. Details near the end.

What “adding a region” actually does

Right now database-1 is a plain regional cluster. When you add a Region, Aurora converts it into the primary cluster of a global database and stands up a read-only secondary cluster in the Region you pick. The two are linked by replication that happens down in the Aurora storage layer, not by the database engine, so lag is typically under a second even across a continent. If us-east-1 ever goes dark, you promote the secondary and carry on.

Now the hands-on part.

Step 1: Try it, and meet the first wall

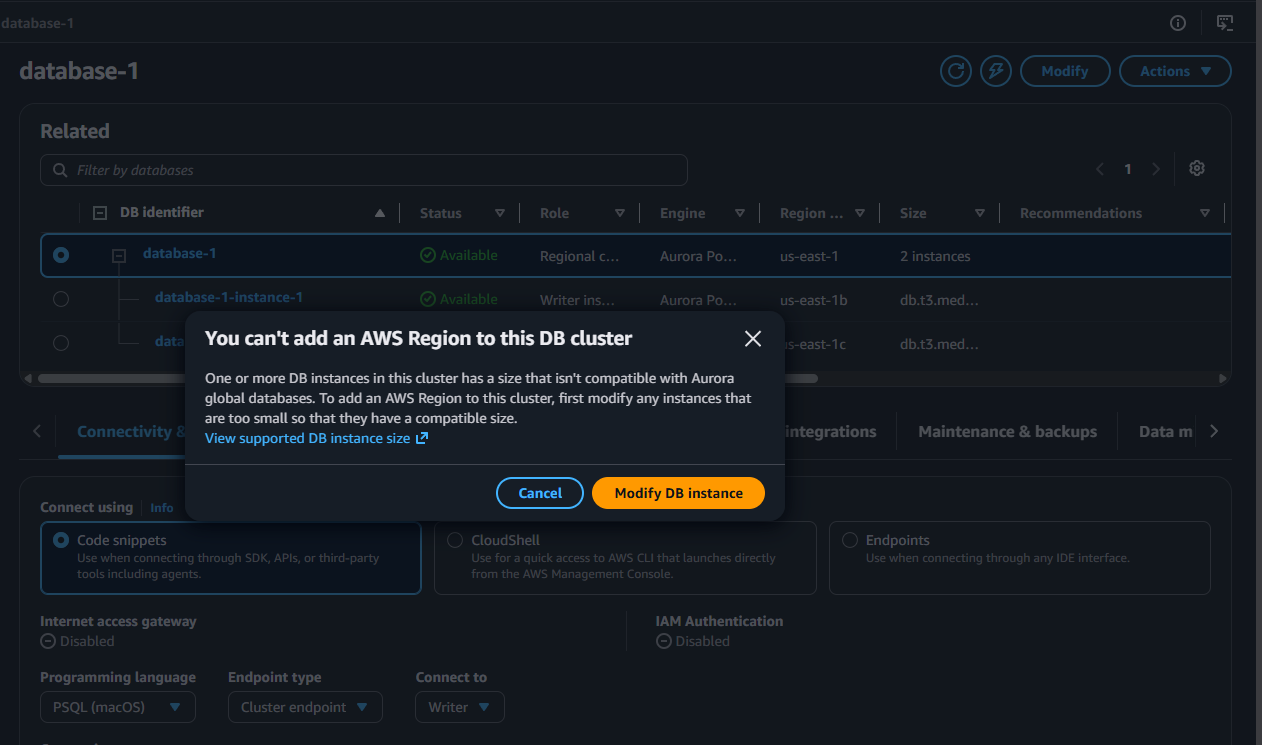

Start optimistically. In the RDS console, Databases → database-1 → Actions → Add AWS Region. On a db.t3.medium cluster you get this instead of a wizard:

“You can’t add an AWS Region to this DB cluster. One or more DB instances in this cluster has a size that isn’t compatible with Aurora global databases. To add an AWS Region to this cluster, first modify any instances that are too small so that they have a compatible size.”

That is rule number one from the list above, in the flesh. Your db.t3.medium is burstable, and burstable classes are not allowed. Helpfully, the dialog has a Modify DB instance button that takes you straight to the fix.

Step 2: Upgrade the instances to an r-class

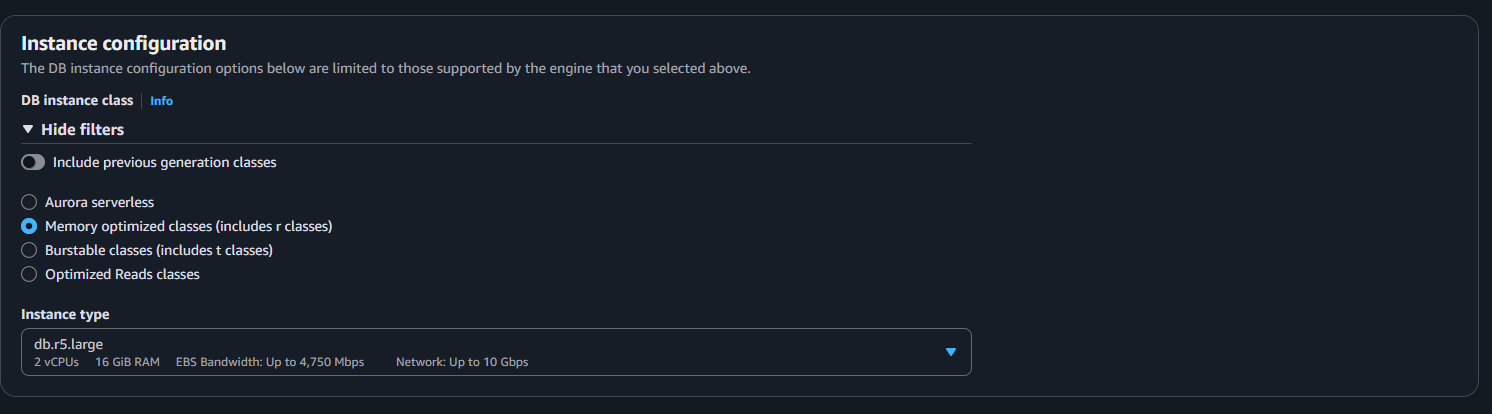

On the Modify page, open the instance-class picker and switch the filter to Memory optimized classes (includes r classes). The smallest r-class Aurora offers is db.r5.large (2 vCPU, 16 GiB), which is plenty for a demo:

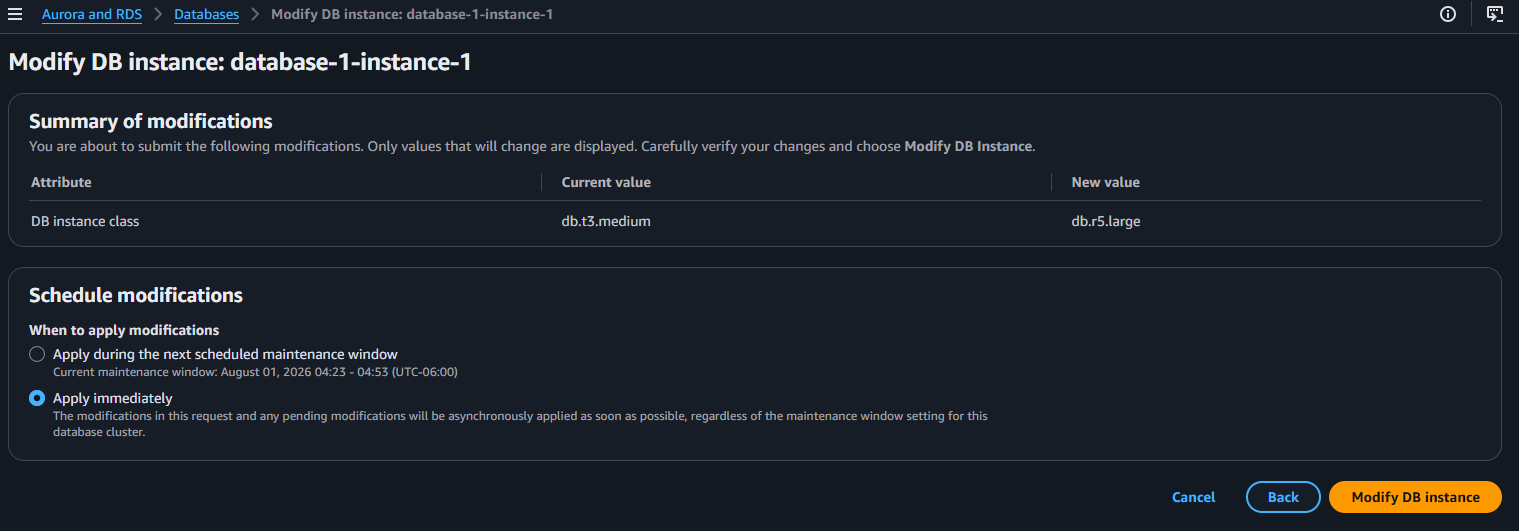

Click Continue, and the next page is the one that answers “will this reboot?” It shows the change (db.t3.medium to db.r5.large) and a Schedule modifications section:

Pick Apply immediately so you are not waiting until Saturday, and submit. Changing the instance class is a compute swap, so the instance reboots. This is the one and only restart in the whole process.

Step 3: Add the region

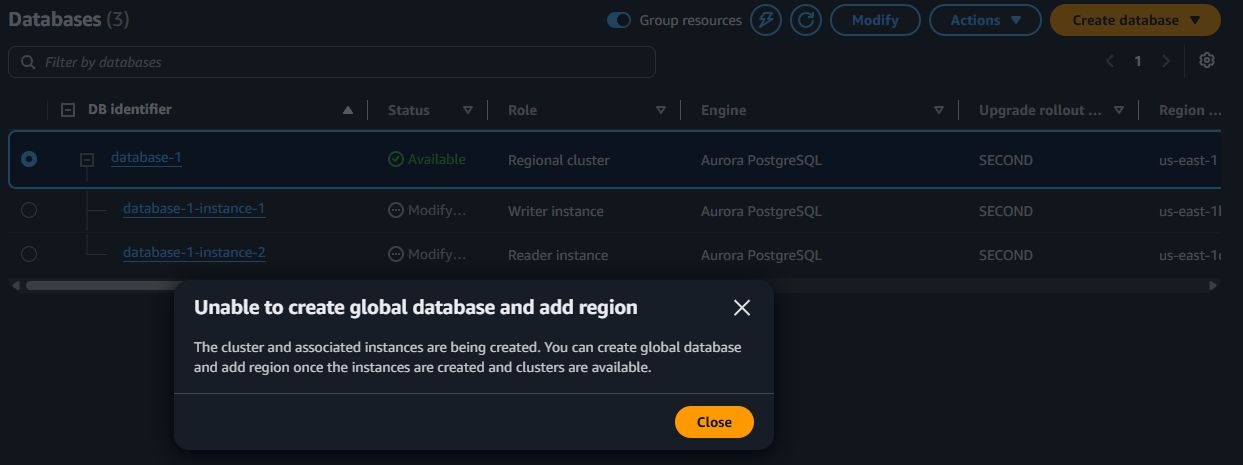

Wait until every instance shows Available at the new size. If you jump the gun while they are still upgrading, you get the second wall:

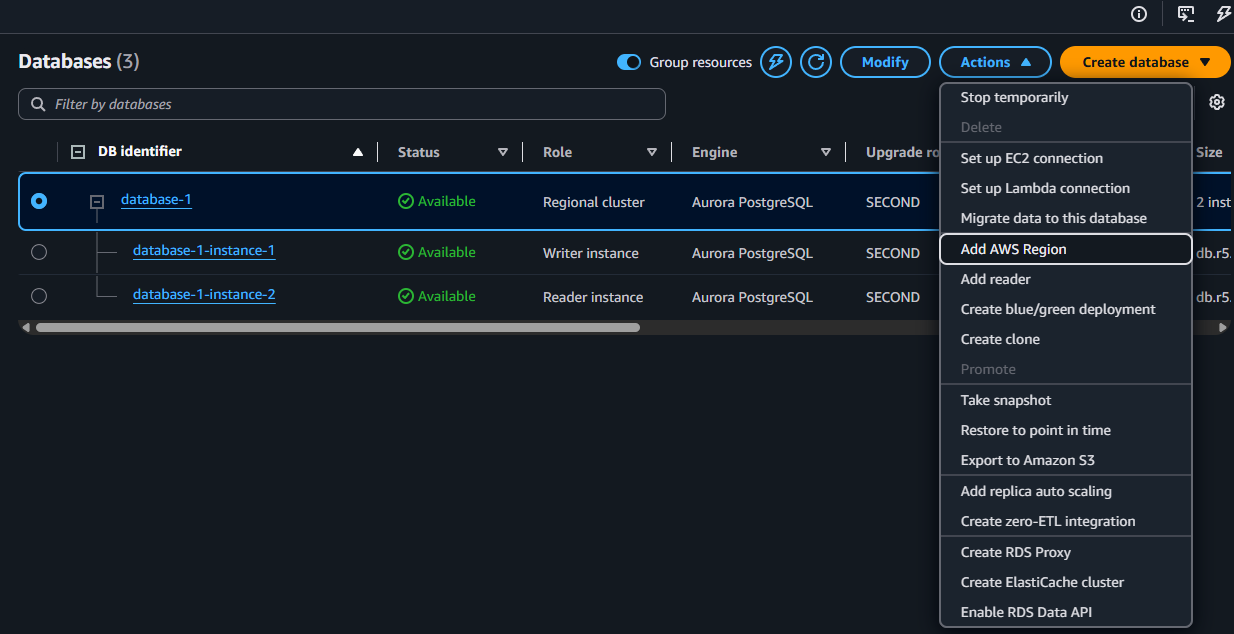

That is just timing. The instances are still Modifying, and Aurora will not restructure a cluster that is mid-change. Refresh, wait for Available, and try again. This time Actions → Add AWS Region opens the real wizard:

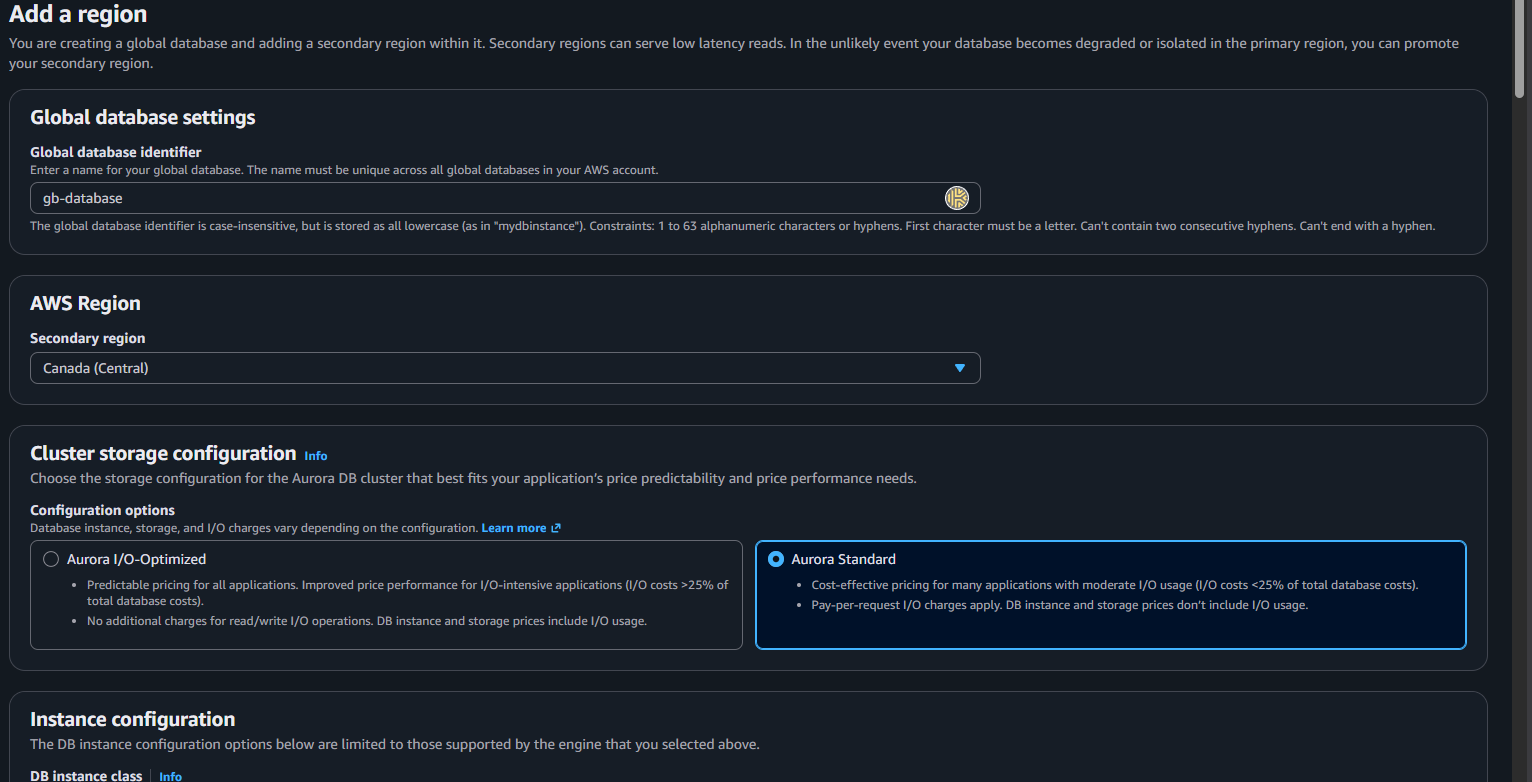

The wizard asks for a Global database identifier (I used gb-database), a Secondary region, and the storage and instance settings for the new cluster:

I picked Canada (Central) for the first secondary. I am based in Calgary, so a Canadian copy gives low-latency reads to Canadian users and keeps a full copy of the data out of the United States for resilience. Leave the secondary instance class at db.r5.large to match the primary, and note the encryption key section: because keys do not cross Regions, this is where you choose the KMS key for the secondary, not the primary’s key.

Why is everything “Modifying”? (and does it reboot?)

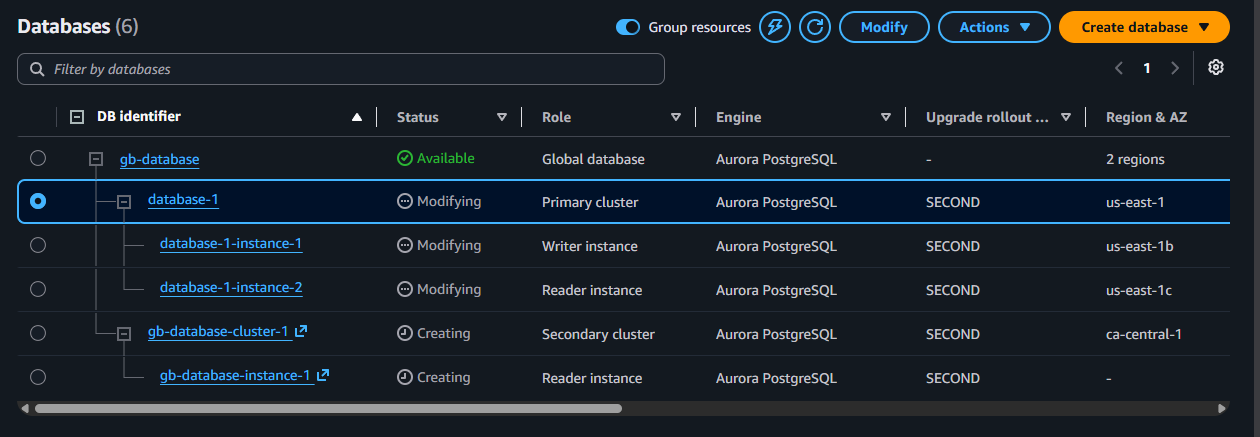

Submit the wizard and the Databases list rearranges into a global-database tree. This is the shot worth keeping:

Notice that the primary cluster and both its instances flip to Modifying, while the new Canadian cluster shows Creating. That surprises people: why is my healthy primary suddenly “modifying” when I only added a second Region?

The reason is that Aurora is re-registering your standalone cluster as the primary of a global database and wiring it into the cross-region replication plane. It is a control-plane reconfiguration, not a compute change, so despite the “Modifying” label your writer keeps accepting reads and writes the entire time. AWS is explicit about this:

Adding a second region, and the opt-in trap

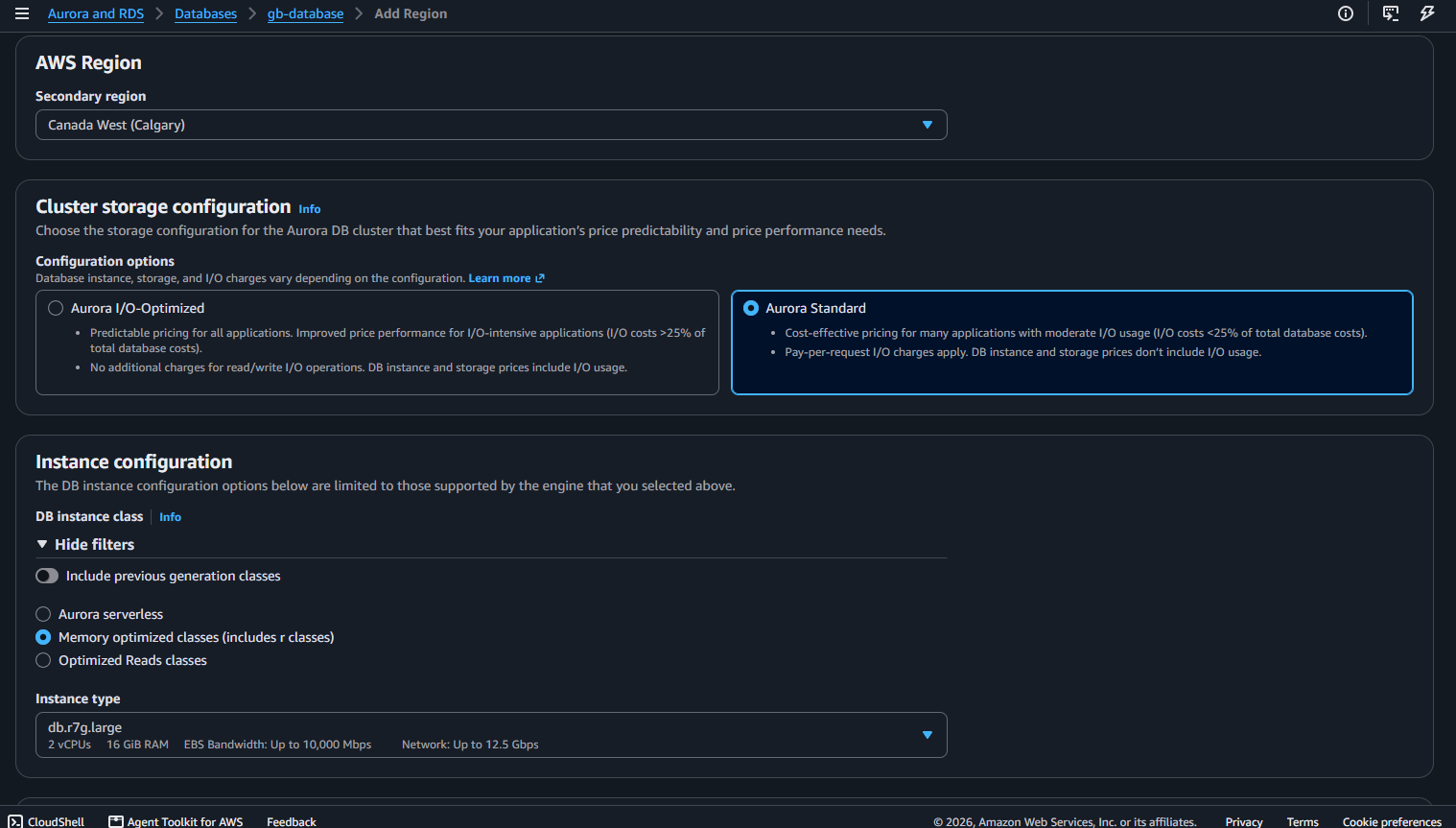

One secondary proves the concept, but a global database can hold more, so I tried to add Canada West (Calgary) as a second secondary. The wizard opened fine:

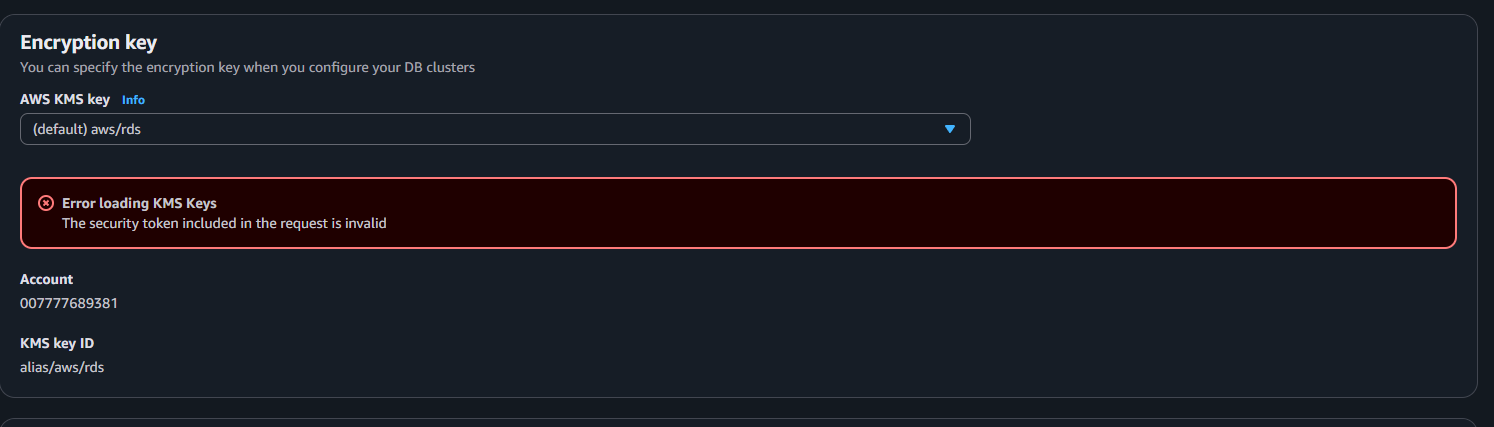

Then the encryption section threw a red error the moment it tried to load keys for Calgary:

“Error loading KMS Keys. The security token included in the request is invalid.”

This is the third wall, and it has nothing to do with your database. Canada West (Calgary) ca-west-1 is an opt-in Region. AWS ships every Region launched after early 2019 switched off by default, and until you enable it on your account, credentials are not valid there. So when the wizard reaches into Calgary to list KMS keys, the request is rejected. That is also why the first secondary worked without complaint: Canada Central ca-central-1 is enabled by default, while Calgary is not.

The fix is quick:

1. Top-right of the console, click your account name, then Account.
2. Scroll to AWS Regions.
3. Find Canada West (Calgary) and choose Enable.
4. Give it a few minutes to activate, then reopen the Add-Region wizard and the KMS list populates.

How far this scales: regions and readers

Once one secondary works, the obvious questions are how many Regions and how many readers you can have. The numbers:

There is one catch worth committing to memory: every secondary Region you add costs the primary one reader slot. Add all 10 secondaries and your primary can hold only 5 readers instead of 15. The secondaries are not affected, each still gets its own 16. In practice you add readers in the Regions where your users are, and add Regions where you need resilience.

Headless secondaries: cheaper DR, slower recovery

Our secondary is not headless. When I added the Region I let the wizard create a reader instance (gb-database-instance-1), so the Canadian cluster has real compute serving reads. A headless secondary is the other choice: the cluster exists and its storage keeps replicating, but it runs zero DB instances.

Why pick one over the other:

How to make ours headless: delete the reader instance but keep the cluster. In the console, select gb-database-instance-1 and Actions -> Delete. The gb-database-cluster-1 cluster stays, its storage keeps receiving replication, and the bill drops to storage plus replication traffic. To reverse it, add a reader back to that cluster.

One practical note: the console always creates one instance when you add a Region, so “headless” is something you switch to afterward by deleting the instance, or you set it up through the AWS CLI, which can create the secondary cluster with no instance at all.

Failover: promoting a Region and repointing the app

The whole point of a second Region is that you can promote it. Aurora gives you two paths: a managed planned switchover for drills and maintenance (no data loss, roles simply swap), and an unplanned failover for a real regional outage (you promote the secondary manually). One consequence is worth knowing before you rely on it:

How the application actually switches Regions

Here is the part that surprises people coming from in-region failover: there is no global endpoint that automatically follows the primary across Regions. In-region, the writer endpoint re-points itself on failover and your app never notices. Across Regions, each cluster keeps its own endpoints in its own Region, so you are responsible for sending the app to the new primary.

The sequence during a real event:

1. Promote the secondary. For a planned move (maintenance, a DR drill) use a managed switchover: roles simply swap and no data is lost. For a real outage use an unplanned failover (failover-global-cluster --allow-data-loss), which promotes the Canadian cluster to a standalone primary that accepts writes.
2. Repoint the application at the promoted Region’s writer endpoint. The usual way is DNS: put your database hostname behind an Amazon Route 53 record and update it, or use Route 53 health checks with DNS failover so the app follows automatically. For rehearsed, orchestrated failovers, Amazon Application Recovery Controller has a building block made specifically for Aurora Global Database.

The targets AWS designs around are an RPO of about 1 second (at most a second of writes at risk in an unplanned failover) and an RTO of about 1 minute to promote a running secondary. A headless secondary stretches that RTO, since an instance has to be created before the new primary can serve traffic.

Verifying replication

You do not need to write anything to confirm the data is live in Canada. Two easy checks:

• CloudWatch: open the secondary cluster’s Monitoring tab and look at AuroraGlobalDBReplicationLag. On a quiet demo it sits in the low milliseconds, which is your proof that writes in Virginia are already in Canada.
• A read query: the secondary exposes its own reader endpoint (gb-database-cluster-1.cluster-ro-....ca-central-1.rds.amazonaws.com). Connect to it with psql from an EC2 box in the secondary Region (a cross-region private connection will not work without extra networking) and run SELECT pg_is_in_recovery();. It returns t, confirming the Canadian copy is a live, read-only replica, exactly like the in-region reader from the previous article.

Using a global database from your application

Day to day, a global database follows one hard rule: only the primary Region accepts writes. Everything else follows from that.

• Writes go to the primary Region’s writer endpoint (database-1.cluster-....us-east-1.rds.amazonaws.com), exactly as before you went global.
• Reads can go to the local Region’s reader endpoint. A service running in Canada reads from the ca-central-1 reader endpoint and gets data that is at most a second stale, with no cross-continent round trip.

So a Canada-based app reads locally (fast) and sends its writes down to Virginia. That write hop is the one unavoidable latency cost of a single-writer design.

Write forwarding removes the awkward part

Making your app juggle “local reader for reads, remote writer for writes” is fiddly. Aurora PostgreSQL solves it with global write forwarding: point the app at the secondary reader endpoint for both reads and writes, and Aurora quietly forwards the writes to the primary for you.

Write forwarding needs a recent engine: Aurora PostgreSQL 16 and higher (all minor versions), or 15.4+ / 14.9+. Your cluster runs 17.7, so it is available. You enable it when adding the Region (or by modifying the secondary), and per session you choose how fresh a forwarded read must be:

-- how up to date reads must be after a forwarded write:
-- eventual (fastest) | session (read your own writes) | global (strongest)
SET apg_write_forward.consistency_mode = 'session';

Use eventual for dashboards that can lag, session when a user must see their own just-submitted change, and global only when you truly need every reader to reflect the write before you continue. For a full hands-on walkthrough of both the local and global variants, see Aurora Write Forwarding.

A few more questions people ask

What exactly am I billed for? Three things on top of the primary: the secondary Region’s instances (unless it is headless) and storage, the replicated write I/O, and cross-Region data transfer for everything shipped north. There is no separate “global database” charge, it is the sum of the parts in each Region.

What are the RPO and RTO? Roughly 1 second of data at risk (RPO) and about a 1 minute promotion (RTO) for a running secondary. Headless pushes the RTO higher because an instance has to be provisioned first.

Do new tables and schema changes replicate? Yes. Replication happens at the storage layer, below SQL, so everything the primary writes (rows, new tables, index builds, DDL) reaches the secondary automatically. You never sync schema separately.

Can I add a Region to a database that already has data? Yes, that is exactly what we did here. Aurora copies the existing volume to the new Region once, then keeps it in sync. There is no “start empty” requirement.

Does a global database span AWS accounts? No. Every cluster in a global database lives in the same AWS account, just across Regions. Sharing data with a different account is a separate problem you would solve with other tooling, not global database.

Clean up (do this today)

This build is the most expensive one in the series: with the upgrade you are running db.r5.large instances in two Regions, which lands around $0.87/hour (roughly $20 per day) before cross-region transfer. Tear it down the same day:

1. Remove the secondary from the global database. Select the secondary cluster, Actions → Remove from Global Database, then delete that cluster.
2. Delete the global database object (gb-database) once it is empty.
3. Downsize or delete the primary. If you are keeping database-1 for later articles, modify it back to db.t3.medium to stop the r-class charge, otherwise delete it.

Deleting the secondary never touches the primary’s data, the two clusters are independent copies linked by replication.

Wrapping up

Adding a Region turns one database into a global one, and the mechanics are mostly about clearing the prerequisites: upgrade off burstable instances, respect the per-Region KMS rule, and enable any opt-in Region before you point the wizard at it. Once those are out of the way the replication itself is invisible and sub-second, and your data survives the loss of an entire Region. Plan the single reboot for the instance-class change, mind the cost of instances in two Regions, and you have real cross-region disaster recovery. For the shell and SQL around all of this, see my Ubuntu Terminal cheatsheet.
