How to Set Up Aurora PostgreSQL (and Why Each Setting Matters) How to Set Up Aurora PostgreSQL (and Why Each Setting Matters)

Before you can cache anything, you need something worth caching. This article sets up the database, an Amazon Aurora PostgreSQL cluster, that the next one will put a Valkey cache in front of. But I did not want to just list clicks. The AWS create-database wizard throws a dozen decisions at you, and most guides tell you what to pick without telling you why. So this is the “why” version.

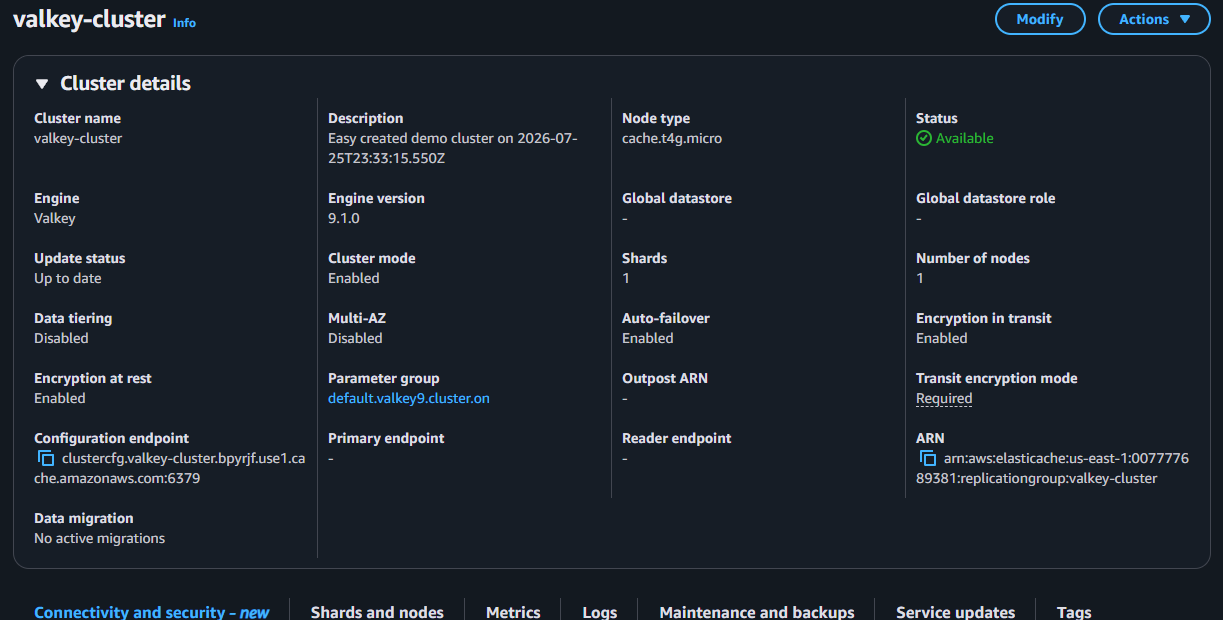

If you have not read the companion piece on the cache side, the Valkey on AWS ElastiCache guide covers the VPC, EC2 client, and security group we are reusing here. This Aurora setup slots right into that same network.

What you are reusing

Aurora, like ElastiCache, lives inside a VPC and is reached through a security group. From the Valkey article I already have:

• A default VPC.
• An EC2 instance (valkey-demo-client) in that VPC to run queries from.
• A security group (valkey-demo-sg) with a self-referencing rule on the PostgreSQL port, 5432.

That last rule is what lets the EC2 box talk to the database. If you are starting fresh, add an inbound rule to your security group: Type PostgreSQL (5432), Source: the same security group. Anything wearing that group can then reach anything else wearing it.

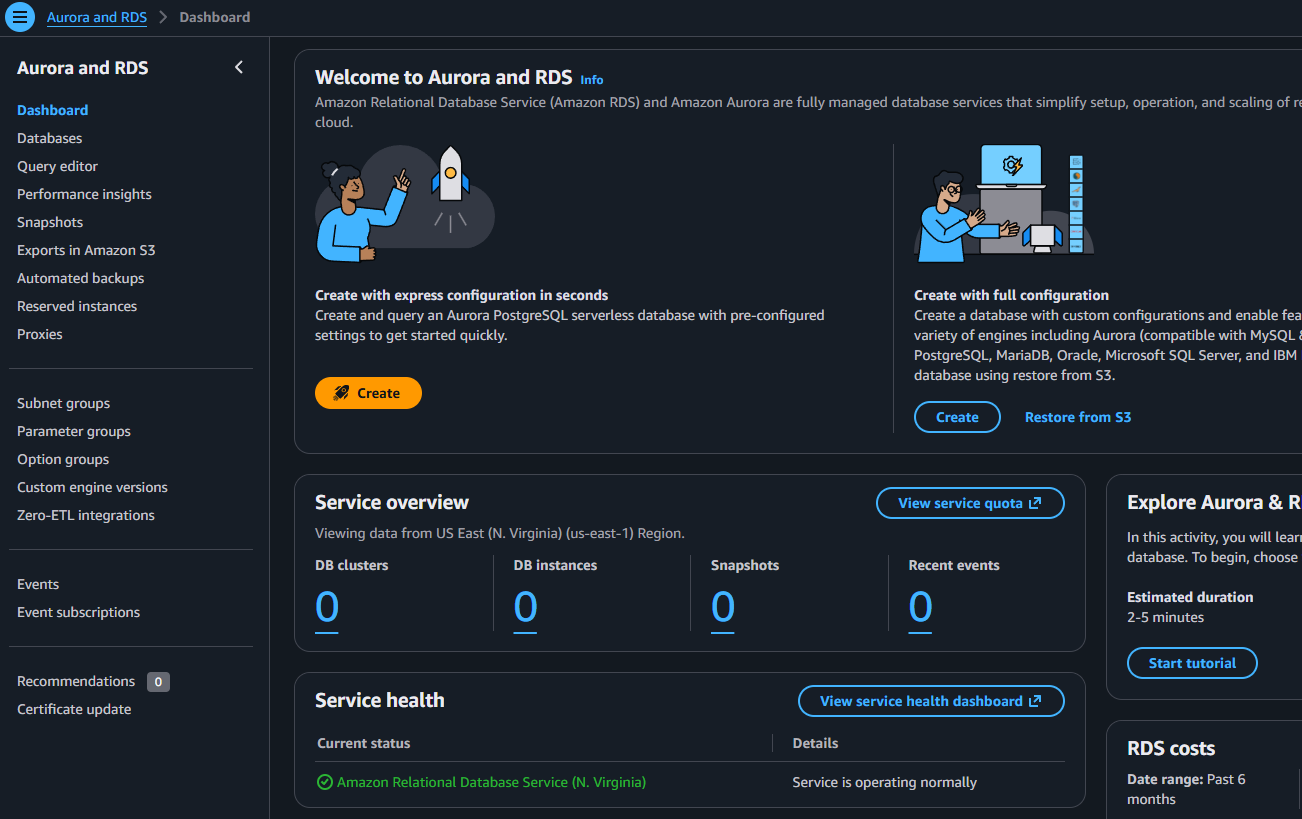

Full configuration, not Express

The wizard’s first fork is Full configuration vs Express configuration. Express spins up an Aurora Serverless database in seconds with defaults you cannot see. That is fine for a quick play, but the whole point here is to understand the settings, so I chose Full configuration. You only learn what a knob does by turning it yourself.

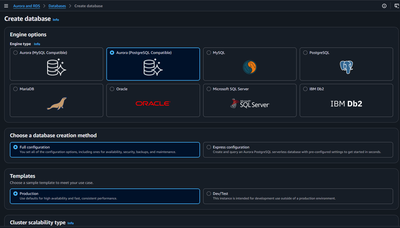

Engine: Aurora PostgreSQL

Aurora comes in MySQL- and PostgreSQL-compatible flavors. I picked Aurora (PostgreSQL-Compatible) running the latest engine (PostgreSQL 17.x). PostgreSQL is the better default for most new work: richer data types, strong JSON support, and a huge ecosystem. Aurora keeps the PostgreSQL interface you know but swaps in AWS’s own storage layer that replicates across three Availability Zones automatically.

Template: Dev/Test, not Production

The Dev/Test template exists so you do not accidentally opt into production-grade cost. Production turns on Multi-AZ and other high-availability defaults that make sense for a real service and waste money on a demo. Since this cluster is a learning tool I will delete the same day, Dev/Test is the honest choice.

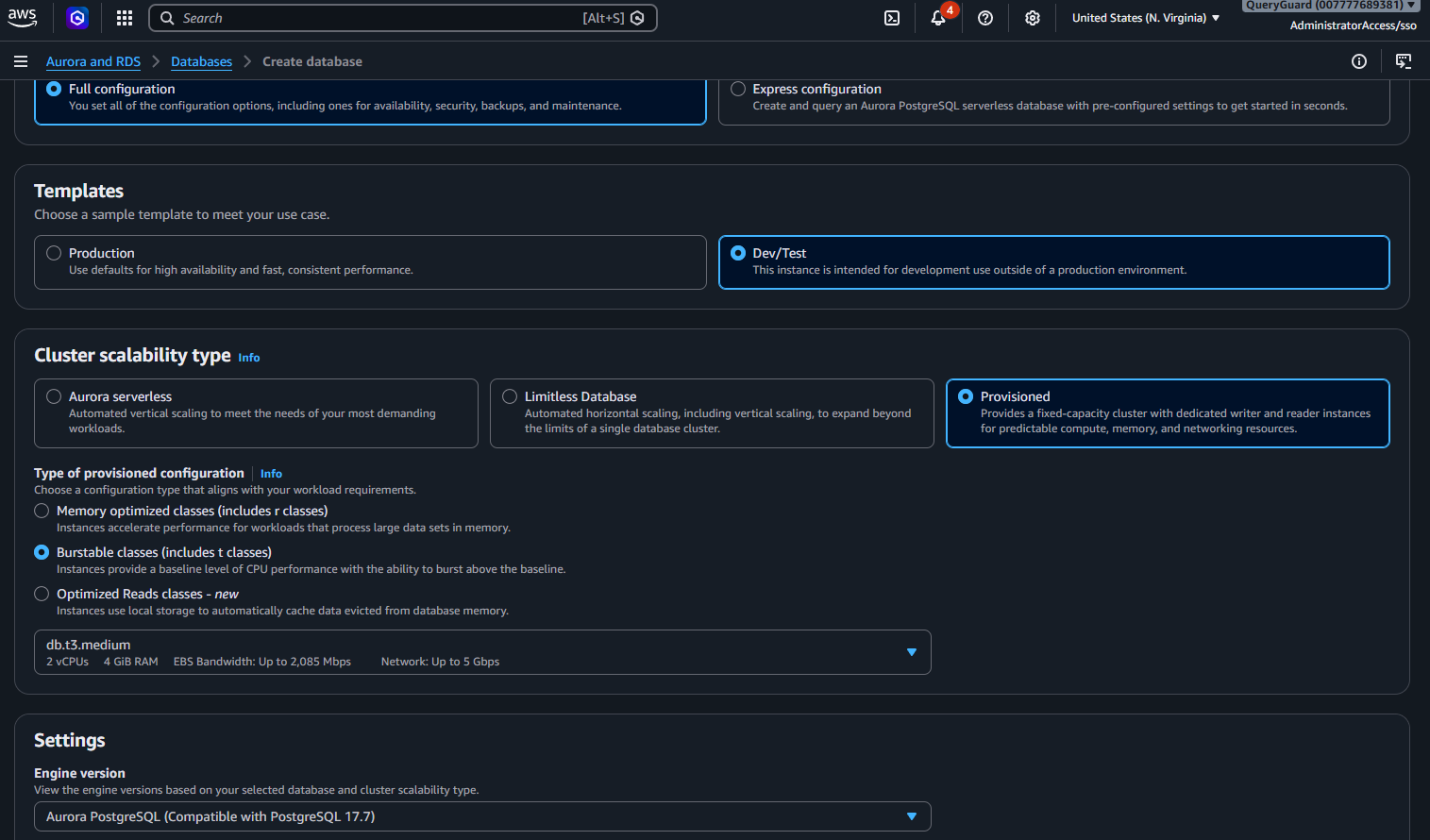

Cluster scalability: why I picked Provisioned

This is the most interesting decision. Aurora offers three scalability types:

I chose Provisioned with a Burstable db.t3.medium (2 vCPUs, 4 GiB RAM), the smallest, cheapest provisioned option. For a demo, provisioned is actually easier to think about than serverless: it is one fixed instance with one fixed hourly price, no “ACU” mental math, and its performance is steady so the cache latency numbers in part two will be clean and repeatable.

Serverless v2 is the better pick when traffic is bursty and you would rather not size an instance at all. It can scale down cheaply between bursts. But for a predictable little demo, and to keep the story simple, provisioned wins. Limitless is for workloads far bigger than anything here, so it is an easy skip.

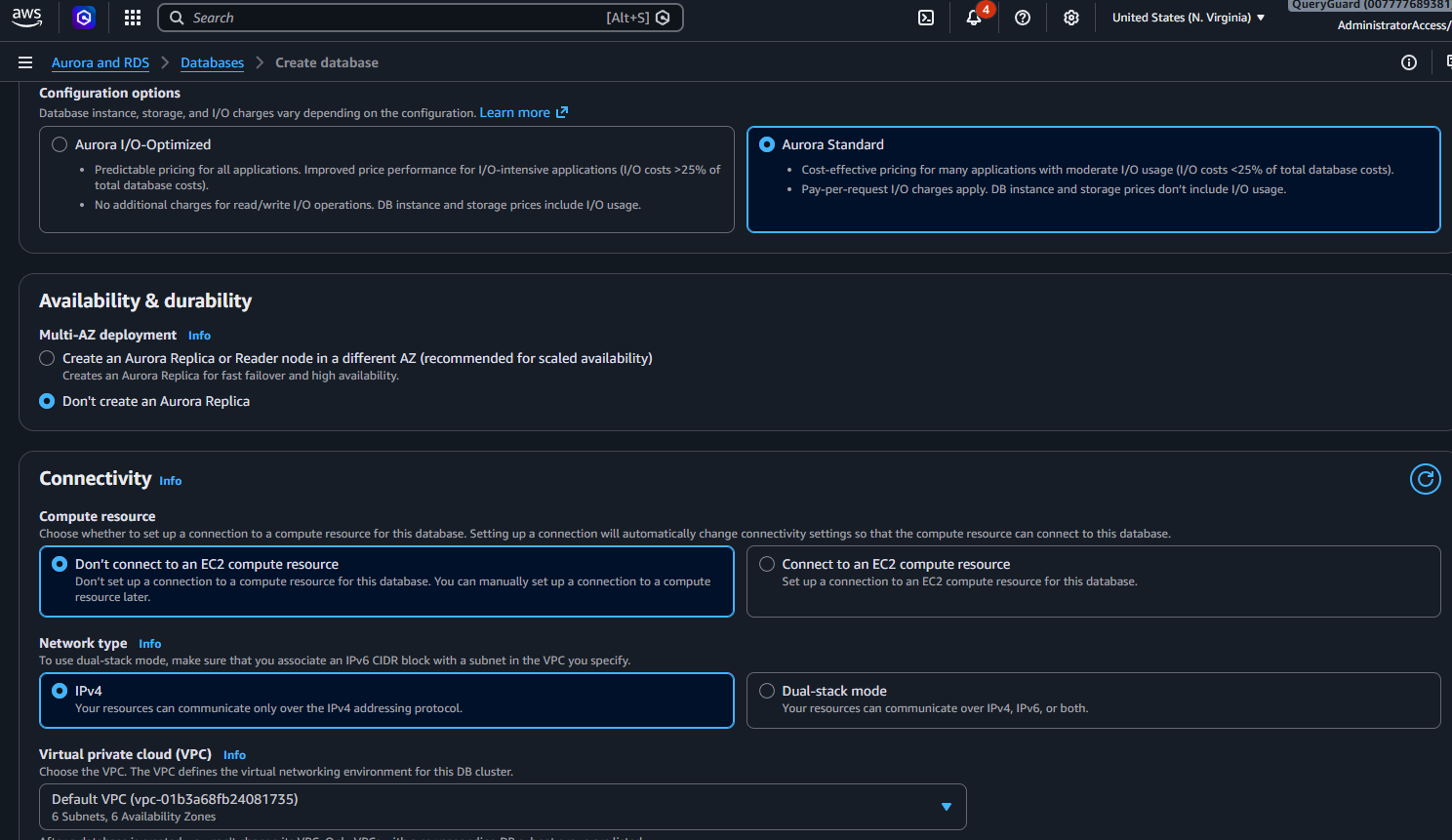

Storage: Aurora Standard, not I/O-Optimized

Aurora bills storage in one of two modes. Aurora Standard charges for storage plus a small per-request I/O fee. Aurora I/O-Optimized removes the per-request I/O charge but costs more up front, and it only pays off once I/O is more than about 25% of your total database bill, i.e. very read/write-heavy workloads. A demo does almost no I/O, so Aurora Standard is clearly cheaper.

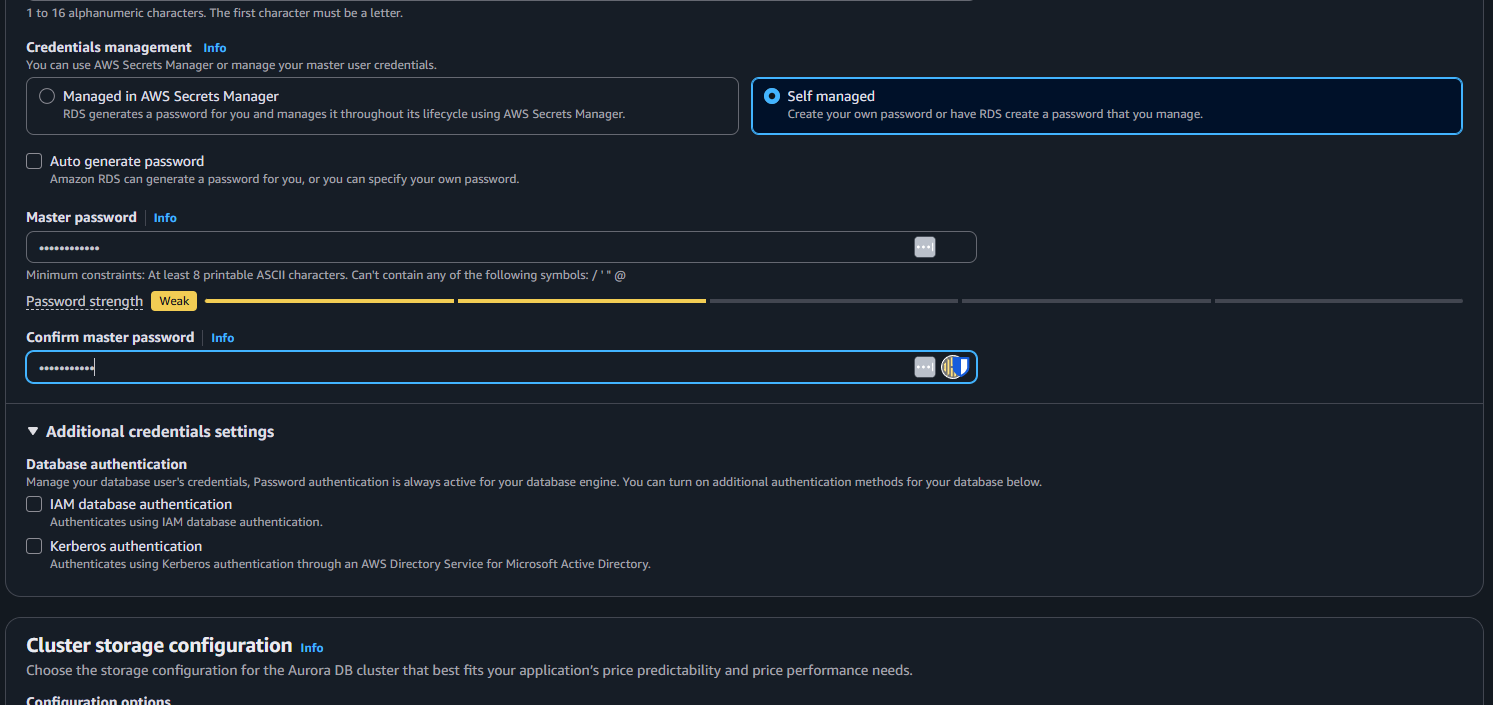

Credentials: Self managed

For the master password you can let AWS Secrets Manager generate and rotate it, or Self managed it yourself. Secrets Manager is the right answer for production because it handles rotation and access control, but it adds a moving part and a small cost. For a demo I chose Self managed and typed a password I will need in a minute to connect with psql.

Availability: no replica

Under Availability & durability I chose Don’t create an Aurora Replica. A replica gives you fast failover and read scaling, which a production database wants, but it doubles the instance cost. A single instance is the cheapest way to learn, and if it fails I will just recreate it.

Connectivity and the security model

This is the part worth slowing down on, because it is where most “why can’t I connect” pain comes from.

• Compute resource: Don’t connect to an EC2 compute resource. The wizard can auto-wire a specific EC2 instance, but I prefer to control the security group myself so the setup is explicit and reusable.
• VPC: the same default VPC as the EC2 client. A database and its client must share a VPC to talk over the private network.
• Public access: No. Because my app runs on EC2 inside the VPC, it reaches Aurora privately. Giving the database a public IP would only add internet-facing attack surface for zero benefit. Public access is almost never the right call for an app database.
• VPC security group: valkey-demo-sg. This is the firewall. Because it has that self-referencing rule on 5432, and my EC2 client is a member of the same group, the client is allowed in. I left the default group attached too, which is harmless, though you can remove it for tidiness.

I also left RDS Proxy off (it is a production connection-pooling feature that adds cost) and kept the default certificate authority. Under Monitoring I left Performance Insights on, its 7-day retention is free and it is genuinely useful for seeing database load later.

Don’t forget the initial database name

In Additional configuration, set Initial database name to something like demo. Miss this and Aurora creates a cluster with no database inside it, and you will connect only to find there is nothing to use. It is the single most common “why is this empty” gotcha.

What it costs

A db.t3.medium Aurora instance runs about $0.08 per hour (roughly $2 for a full day) plus a little storage and I/O. That is more than Serverless v2 costs at idle, but it is predictable. The one rule that keeps this cheap: delete the cluster the same day. Left running, it is around $60 per month.

What’s next

With Aurora Available, the foundation is done. In the next part we connect from the EC2 box with psql, create real tables, seed some data, and then put Valkey in front using the cache-aside pattern, measuring the difference between a cold query that hits Postgres and a warm one served from Valkey. For the cache side of that story, see the Valkey on AWS ElastiCache guide; and if you script against AWS while doing this, my Python Boto3 cheatsheet and Ubuntu Terminal cheatsheet are handy companions.

Configure it deliberately, understand each switch, and the database stops being a black box.

References and Further Reading

• Amazon Web Services. Amazon Aurora User Guide.
• Amazon Web Services. Aurora Serverless v2.
• Amazon Web Services. Aurora storage: Standard vs I/O-Optimized.
• Amazon Web Services. Controlling access with security groups.
