S3 Files on EC2: Mount an S3 Bucket as a File System (the Honest Guide) S3 Files on EC2: Mount an S3 Bucket as a File System (the Honest Guide)

In the EC2 storage guide we met the File systems panel and its four options: S3 Files, EFS, FSx, and None. The first one, S3 Files, is the newest and the most interesting: it takes an ordinary Amazon S3 bucket and makes it appear as a folder on your instance, so your programs read and write S3 as if it were a local disk.

That sounds like one click. It is not. This is the honest version, including a build detour that ate an afternoon, the four setup gotchas that will trip you, and, at the end, the three questions that actually matter: how fast is it compared to EBS and EFS, where should you use it, and can you run something real like Jenkins on it.

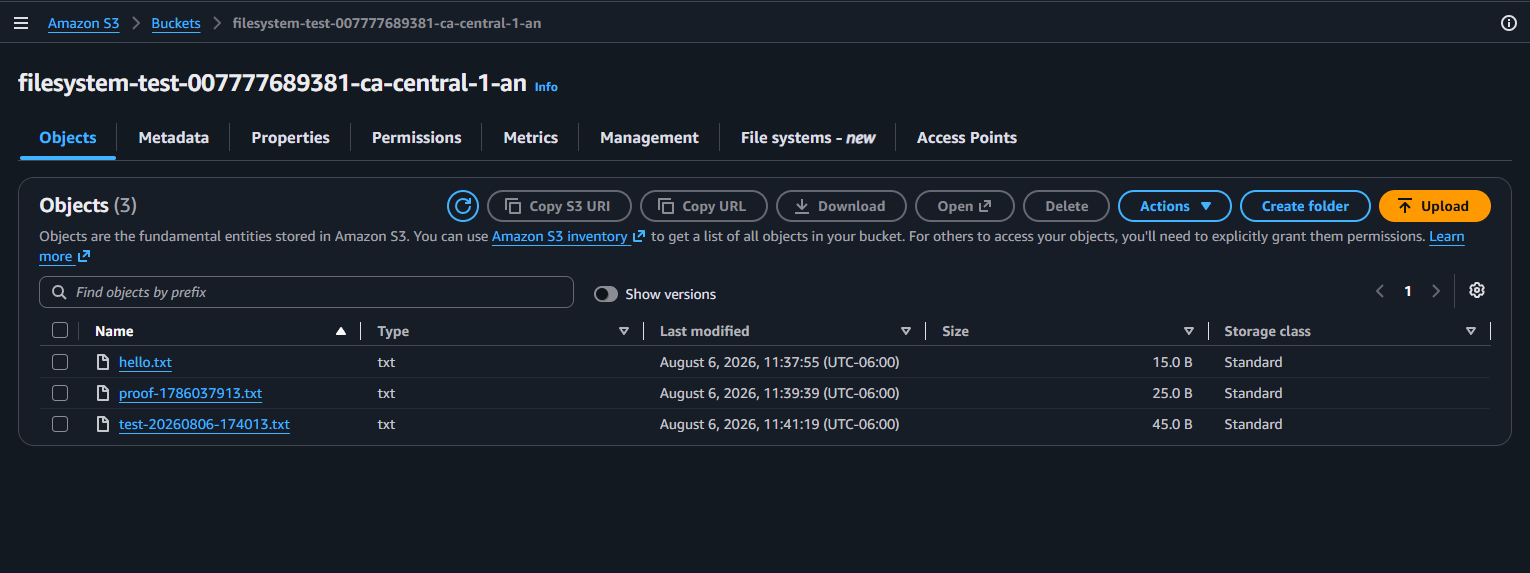

By the end I had three files written from an EC2 box showing up as objects in the bucket:

What S3 Files actually is

Amazon S3 Files is a managed file system that fronts an S3 bucket. AWS describes it as “a high-performance file system that seamlessly connects any AWS compute resource with Amazon S3.” Under the hood:

• You create a file system resource (an fs-... id) that points at a bucket (or a prefix inside one).
• It gets a mount target inside your VPC, exactly like EFS.
• On the instance you mount it with the s3files filesystem type from the amazon-efs-utils client, which talks to the mount target over TLS.
• Every file you see in the mount is a real S3 object. Write a file, and an object appears in the bucket.

So the mental model is: the folder is a live window onto a bucket. Nothing is copied onto the instance; the data lives in S3 and streams through the mount.

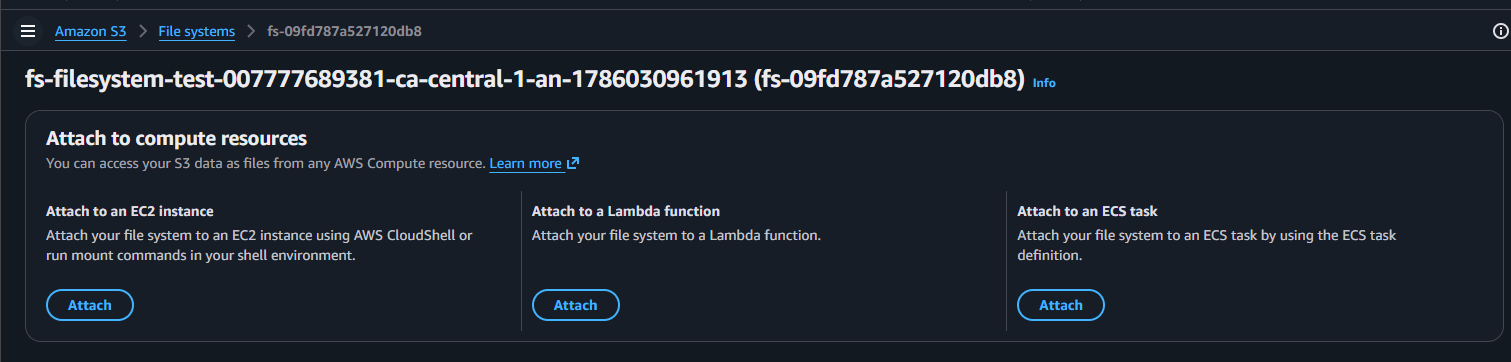

You can attach one file system to EC2, Lambda, or ECS:

Creating the file system (and the first two gotchas)

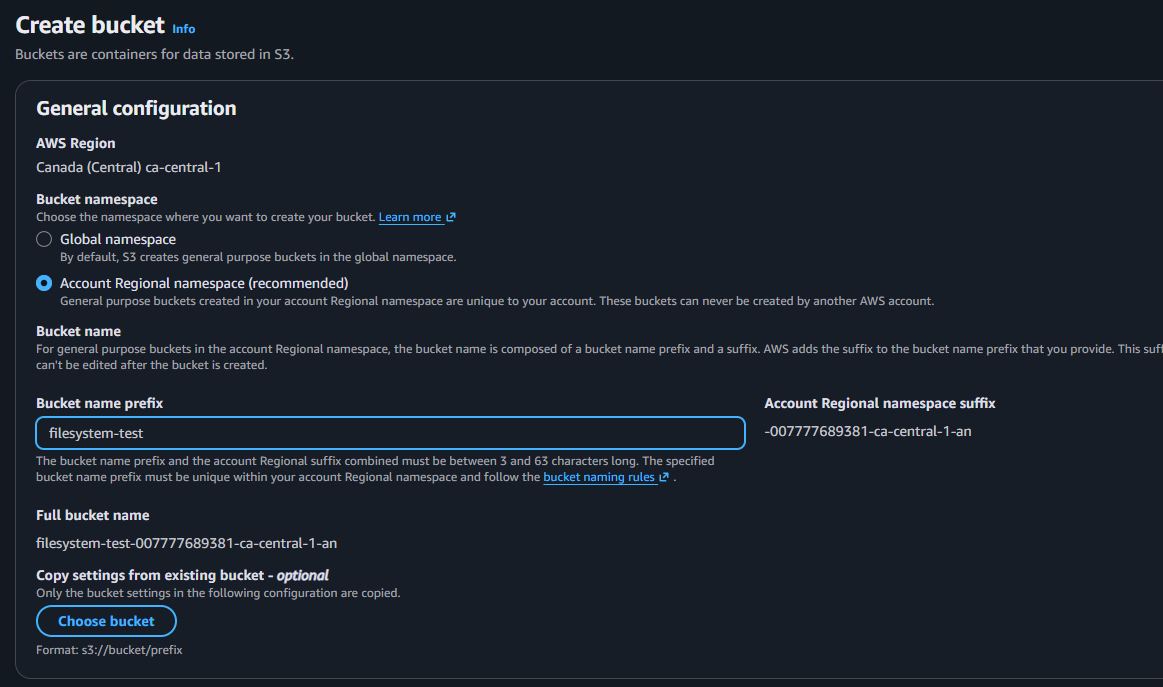

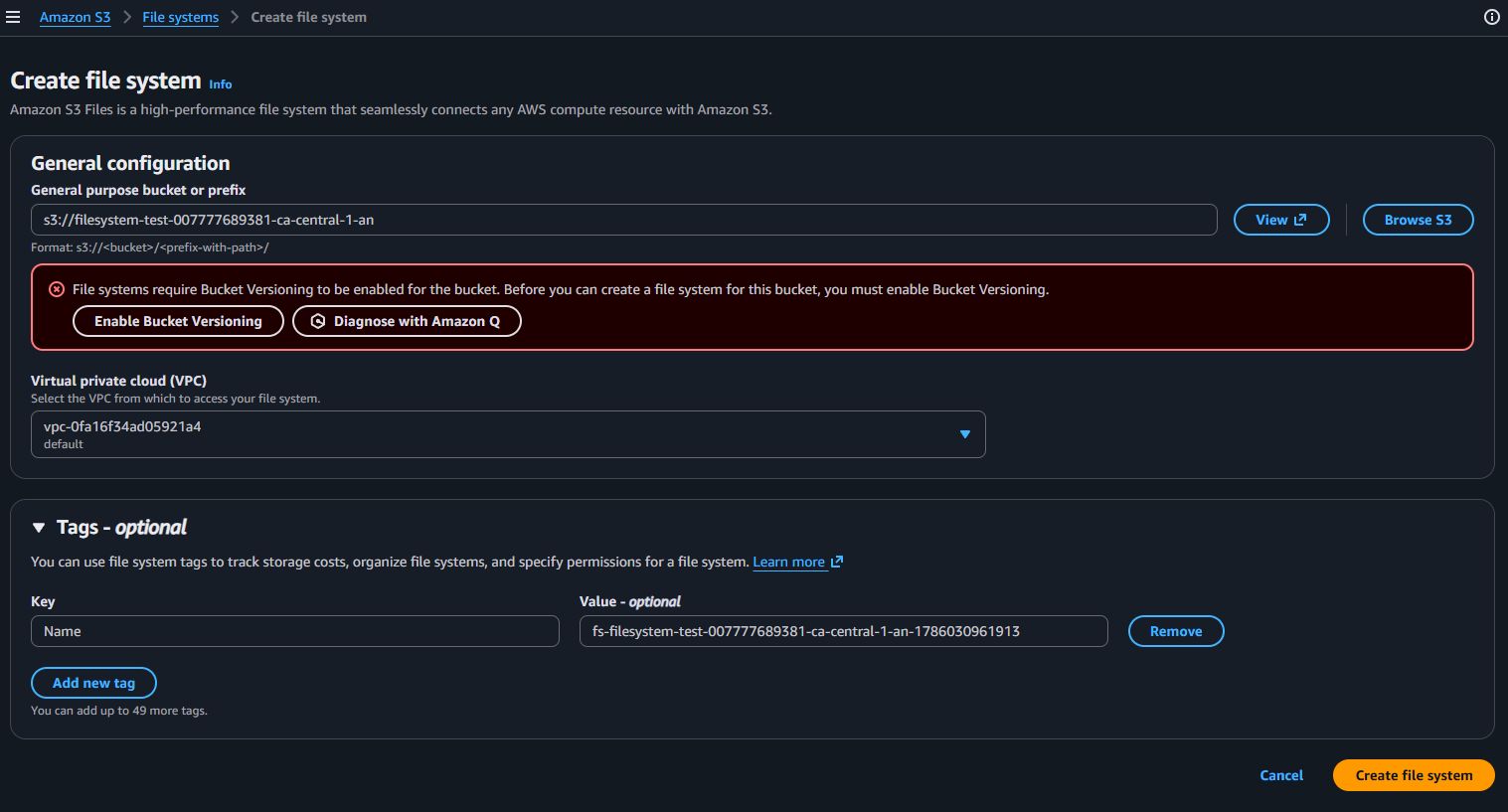

You create the file system from S3 → File systems → Create, pointing it at a bucket. I made a fresh bucket for it:

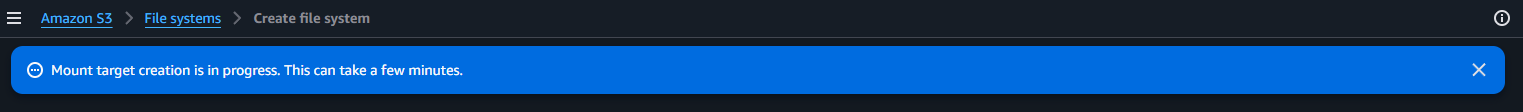

Once versioning is on, you pick the VPC and create it. AWS then provisions a mount target in your VPC, which takes a minute:

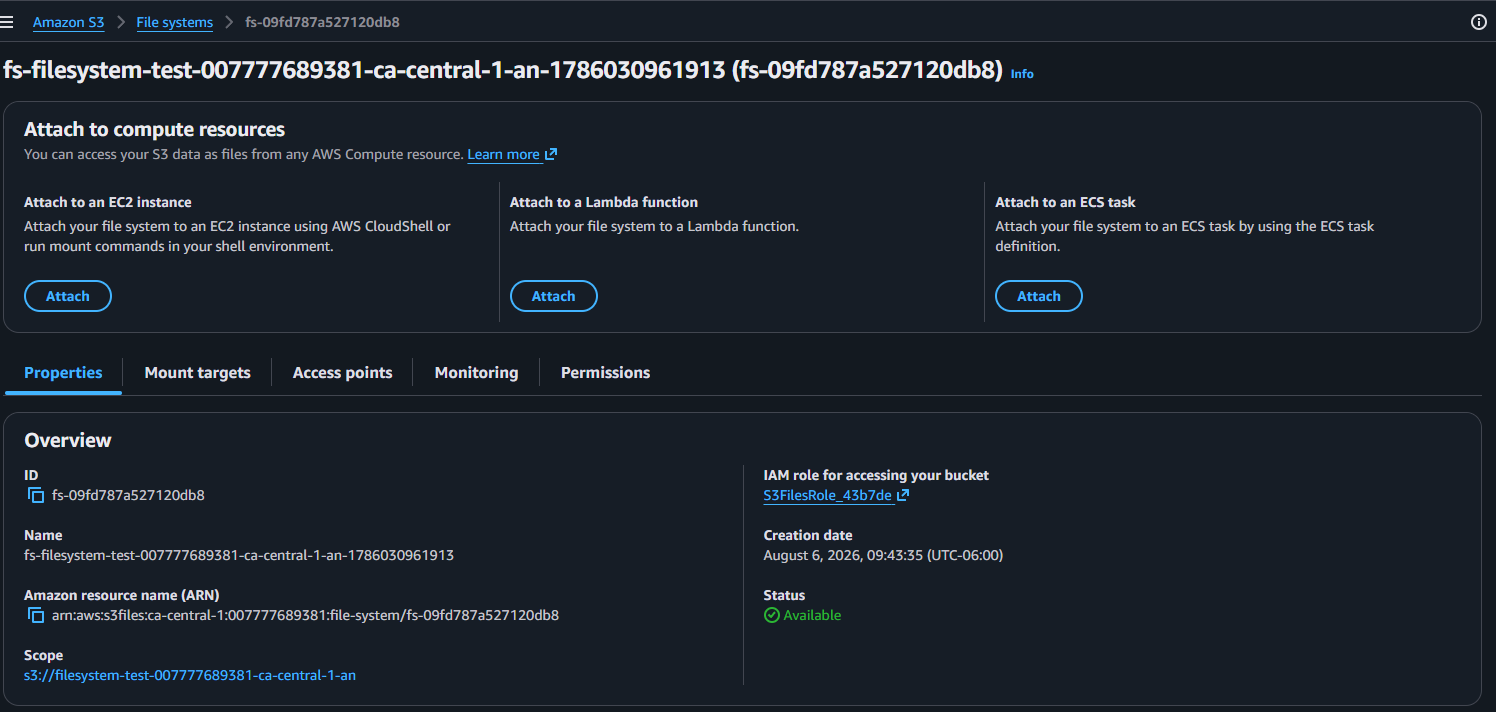

When it is Available, the overview shows the file system id, its ARN, and, importantly, an IAM role AWS auto-created so the file system itself can reach the bucket:

Mounting it on EC2 (and the next two gotchas)

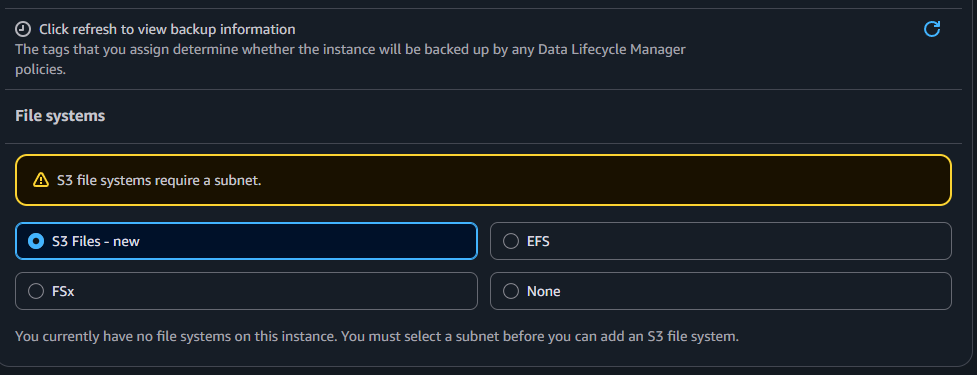

If you attach the file system from the EC2 launch wizard’s File systems panel, you hit the second gotcha immediately:

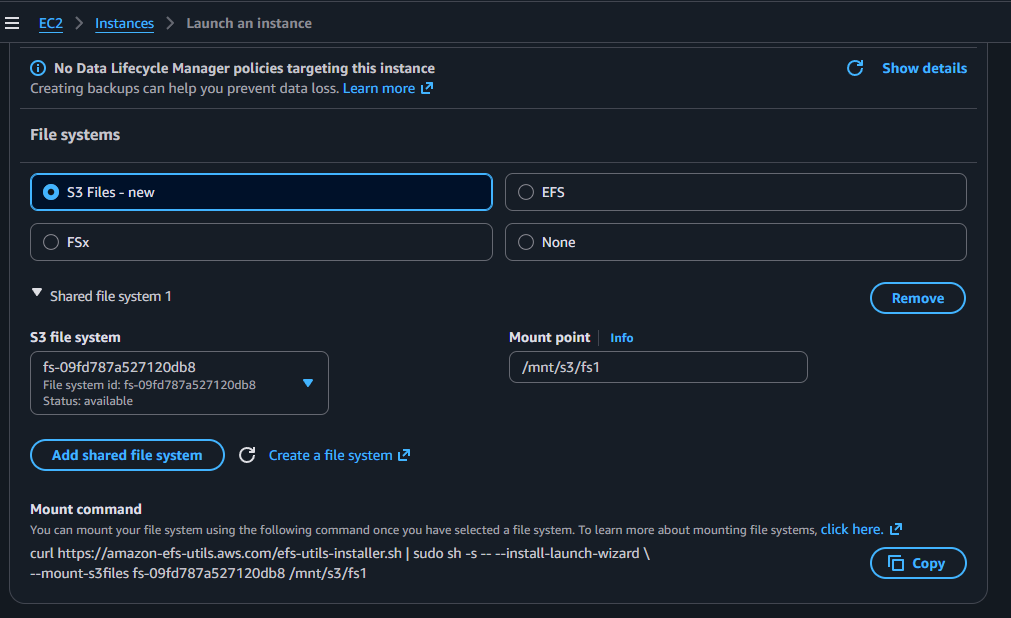

With a subnet chosen, you attach the file system, set a mount point (I used /mnt/s3), and the wizard hands you the exact mount command:

Installing the client — the easy way vs the afternoon I lost

That command installs the amazon-efs-utils client and mounts in one go:

curl -fsSL https://amazon-efs-utils.aws.com/efs-utils-installer.sh | \
  sudo sh -s -- --install-launch-wizard --mount-s3files fs-09fd787a527120db8 /mnt/s3/fs1

On a supported OS this just works — it downloads a prebuilt package, no compiler involved. On Amazon Linux 2023 it is even simpler:

sudo dnf install -y amazon-efs-utils

Here is the honest part. I was on Ubuntu 26.04, and the installer flatly refused it: ERROR: Unsupported operating system version 'ubuntu/26.04'. On an unsupported OS your only route is to build the client from source, and that turned into a gauntlet:

After building and installing the .deb, the mount helper exists at /sbin/mount.s3files, and you can mount manually:

sudo mkdir -p /mnt/s3
sudo mount -t s3files fs-09fd787a527120db8:/ /mnt/s3

Gotcha 4 — the mount times out until you open port 2049

My first mount attempt just timed out:

Mount attempt 1/3 failed due to timeout after 15 sec...

An S3 file system is reached through its mount target over TCP 2049 (NFS), exactly like EFS. The fix is a security-group rule: on the mount target’s security group, allow inbound 2049 from the instance (its security group or private IP). A quick reachability check:

nc -vz <mount-target-ip> 2049      # "succeeded" means the path is open

Once 2049 was open, the mount attached. And then a genuinely confusing thing:

findmnt /mnt/s3
# /mnt/s3  127.0.0.1:/  nfs4  rw,...,port=20185,...

Proving it works

With the mount real, writing files creates S3 objects:

echo "hello from ec2" | sudo tee /mnt/s3/hello.txt
echo "s3files works $(date +%s)" | sudo tee /mnt/s3/proof-$(date +%s).txt
ls -lh /mnt/s3

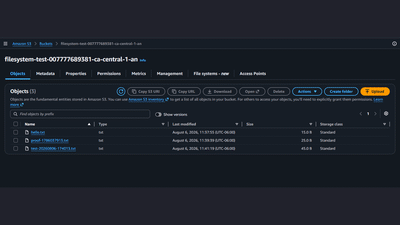

Refresh the backing bucket and there they are as objects (the screenshot at the top of this article). To persist the mount across reboots:

echo 'fs-09fd787a527120db8:/ /mnt/s3 s3files _netdev,nofail 0 0' | sudo tee -a /etc/fstab

How fast is it? Latency vs EBS and EFS

This is the question that decides most designs, so let us be blunt. S3 Files is built for throughput, not latency. Because every file is an S3 object reached over the network, per-operation latency is much higher than a local disk.

Read that as orders of magnitude, not SLA numbers: EBS is fastest, EFS sits in the middle, S3 Files is the slowest per operation but scales throughput and capacity essentially without limit. The moment a workload does lots of small, random, latency-sensitive operations, S3 Files is the wrong tool. The moment it streams large objects or needs a bucket’s worth of data visible as files across many machines, S3 Files shines.

Where to use it, and where not

Good fits:

• Reading large datasets straight from S3 — ML/AI training data, genomics, analytics over big files, without copying them onto a disk first.
• Writing new output files from a pipeline — rendered media, transformed data, batch results.
• Sharing a bucket’s data as files across many EC2/Lambda/ECS compute at once, without rewriting apps to use the S3 SDK.
• Cheap, effectively unlimited capacity where per-op latency does not matter.

Reach for something else when:

The clean rule: big files, read-mostly or write-once → S3 Files. Small files, edited in place, latency-sensitive → EBS or EFS.

Can you run full Jenkins on it?

Short answer: no — not the Jenkins home directory. JENKINS_HOME is thousands of small files with constant in-place updates (config.xml, job configs, build records), plus renames and file locking. Object-backed storage handles exactly none of that well, and the per-op latency would make the controller crawl. Putting JENKINS_HOME on S3 Files is asking for corruption and timeouts.

What does work is the split most teams already use:

• JENKINS_HOME → EBS (single controller) or EFS (if you need shared/HA controllers). This is where Jenkins wants a real POSIX filesystem.
• Build artifacts and large outputs → S3 (via S3 Files or the S3 plugin). Big files, written once, read occasionally — a perfect S3 fit.

So: run Jenkins on EBS/EFS, and use S3 for the artifacts it produces. If you are building Jenkins on AWS, my Jenkins on EC2 Image Builder piece pairs well with this split.

Can you store config files or logs on it?

Config files: it depends on the pattern. Read-mostly config distributed to many instances (write once, read at startup) works fine. But config that apps edit in place is a poor fit, and for small config a purpose-built store (SSM Parameter Store, AppConfig, or a plain S3 GetObject at boot) is usually better than a filesystem mount.

Logs: be careful here. Active log files are appended continuously, and object-backed file systems do not handle appends to an existing object well — a file maps to an object that is written once. So:

• Writing to a live, growing log file on the mount → no. Write logs to the local disk (EBS), rotate them, and then ship the rotated files.
• Archiving completed/rotated log files as new objects → yes, that is a great use — each rotated file is a new object.
• For real-time logs, CloudWatch Logs (or an agent shipping to S3) is the right pattern, not a live mount.

What it costs

There is no disk to provision — you pay ordinary S3 prices: storage per GB-month plus request costs (GET/PUT/LIST) and any data transfer. The client is free. For large, read-mostly datasets this is dramatically cheaper than keeping the same data on EBS or EFS. Nothing is stored on the instance, so terminating it leaves the bucket untouched — exactly what you want for data that should outlive the box.

Clean up

Terminate the instance (the mount just disappears). If you spun up a bigger box to survive the source build, terminate that too. Delete the file system and empty the bucket if you do not need them.

Wrapping up

S3 Files is a genuinely useful idea — give a bucket a filesystem face so ordinary programs can read and write it, shared across EC2, Lambda, and ECS. But it is not a general-purpose disk: it is a high-throughput, high-latency, object-backed mount. Use it for large data you read a lot and write once; keep databases, Jenkins homes, live logs, and anything latency-sensitive on EBS or EFS.

And save yourself the afternoon I lost: mount it from a supported OS (Amazon Linux 2023’s dnf install amazon-efs-utils, or Ubuntu 24.04 LTS with the prebuilt installer). The from-source build on a too-new distro is a rite of passage nobody needs.

For the wider storage picture, see the companion EC2 storage guide; and if you script against S3, the Python Boto3 cheatsheet is a handy companion.

References and Further Reading

• Amazon Web Services. Mounting S3 file systems on Amazon EC2.
• Amazon Web Services. Prerequisites for S3 Files.
• Amazon Web Services. Amazon EBS volume types.
• Amazon Web Services. Amazon EFS performance.
• aws/efs-utils. Building from source.
